WHEEL TUB INSTALLATION GUIDE


Center of Axle Normally Center Bolt Hole in Bottom Lip

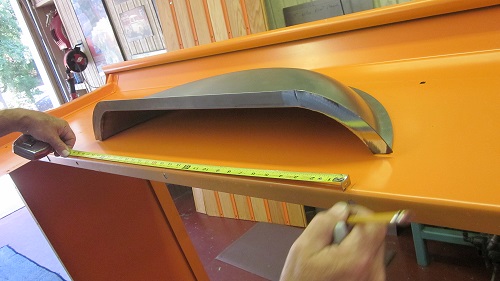

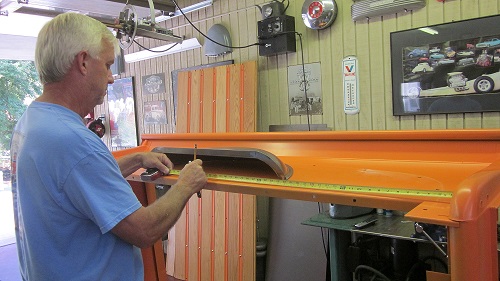

Measure Opening in Tub
Center tub on Mark



Place Tub on Bed Side
Even Lip on Tub with Bottom Bed Lip

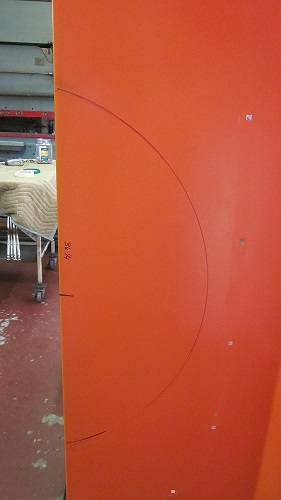

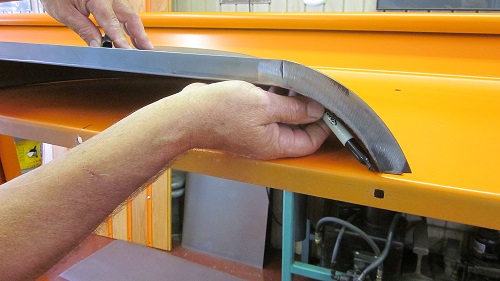

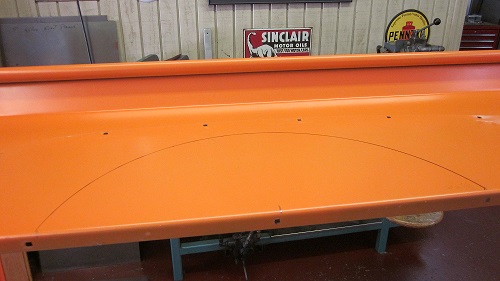

Take Fine Point Sharpie - Mark inside of Tub

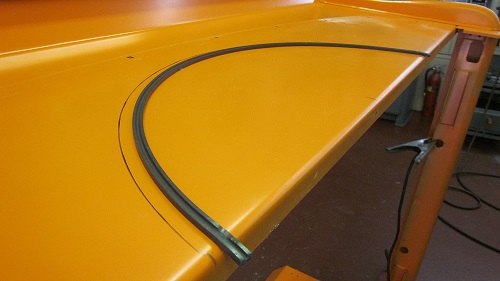

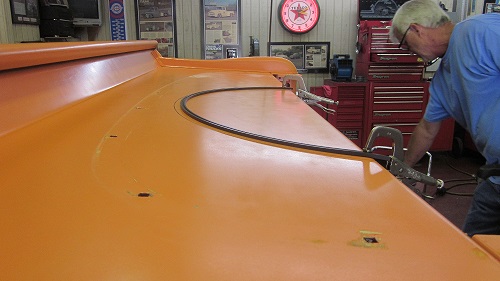

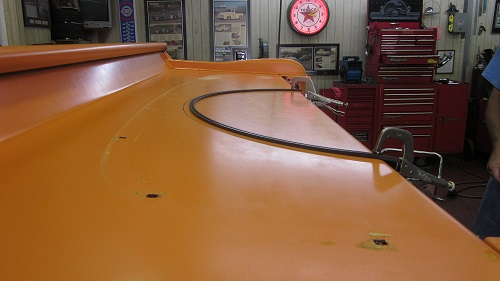

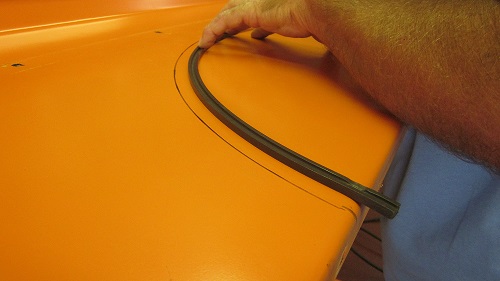

Using Magnetic Pin Stripper Tape
Place on Bed Side where Plasma will cut 1/8" Outside of Mark
Can also be done with jigsaw with fine tooth Blade

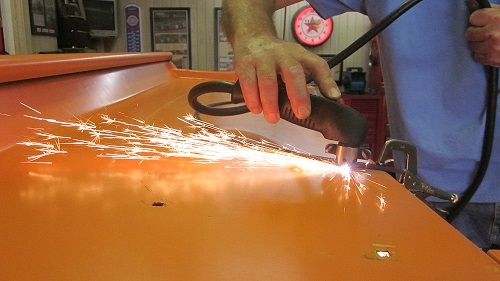

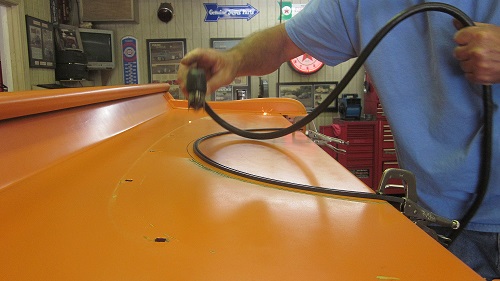

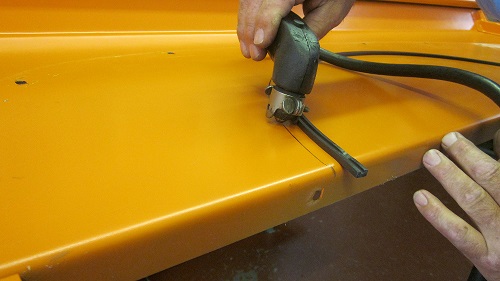

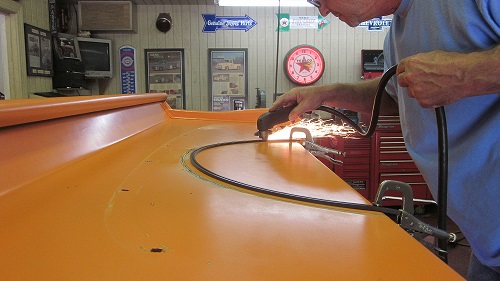

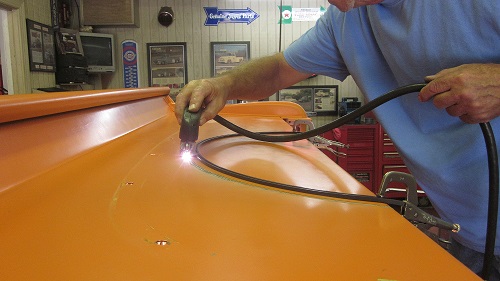

Plasma cut out for Tub

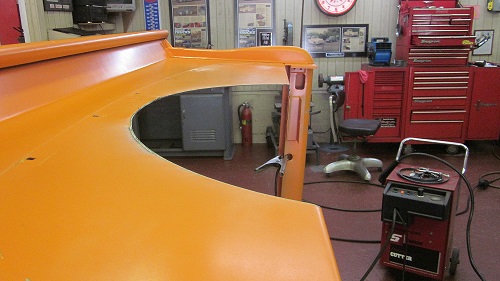

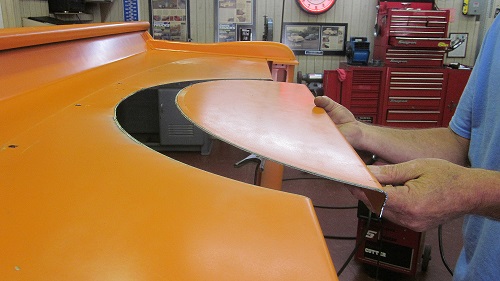

Remove Panel

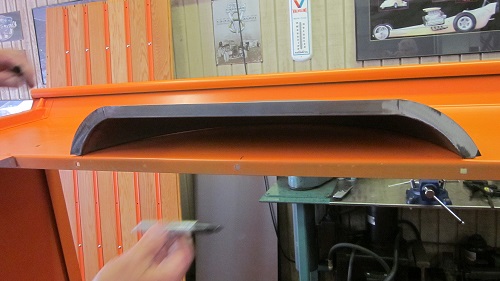

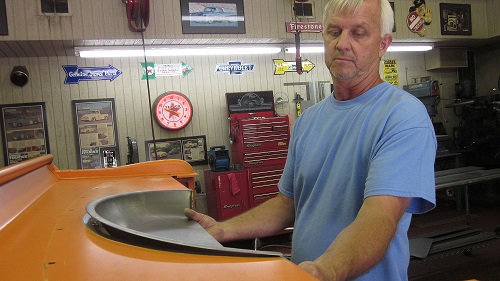

Place Tub back in hole

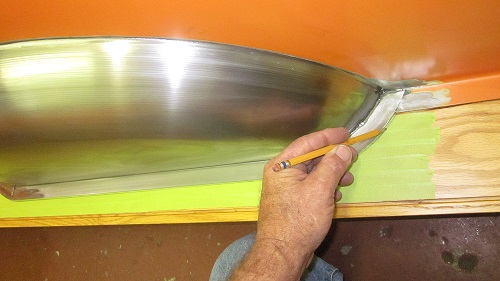

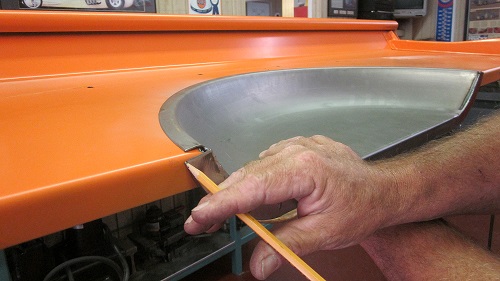

Mark Bottom Lip
Bed Side - Saw out for Tub Lip

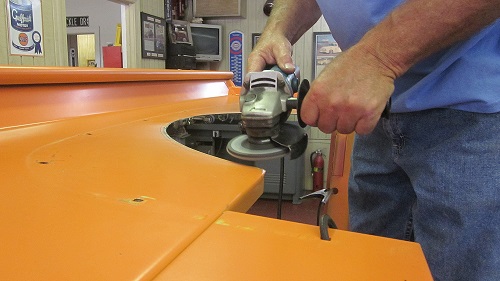

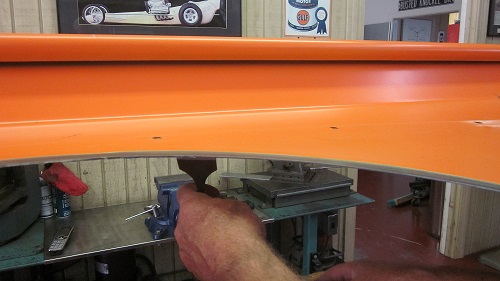

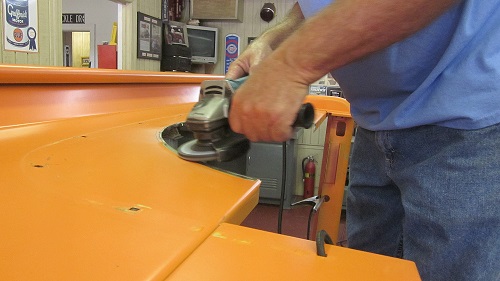

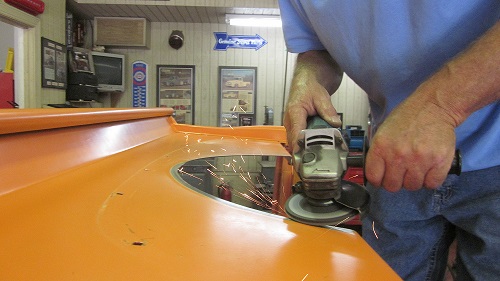

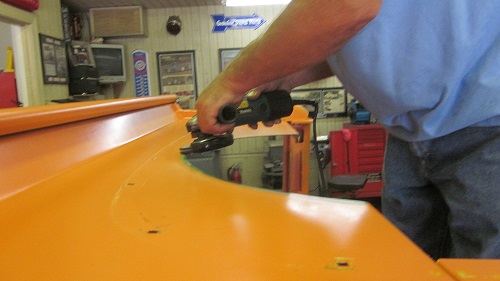

Take Grinder - Grind 1"
Needs to be Ground all way round where Lip will be Bonded

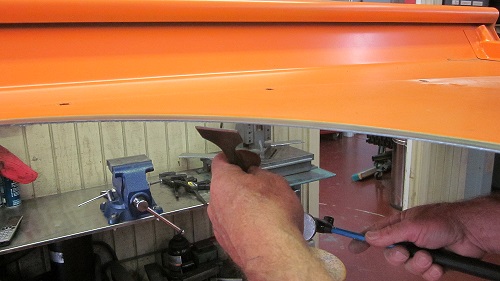

Deburr back side if using Plasma

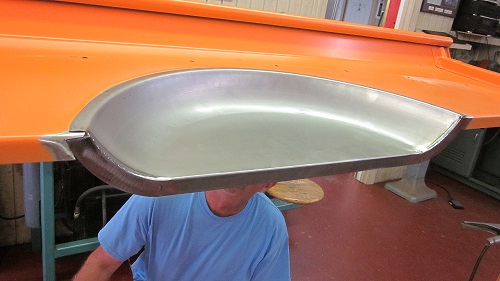

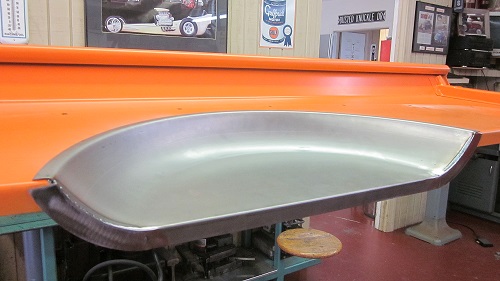

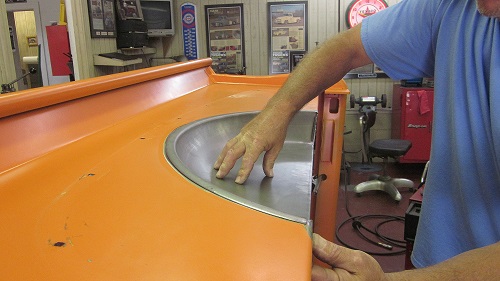

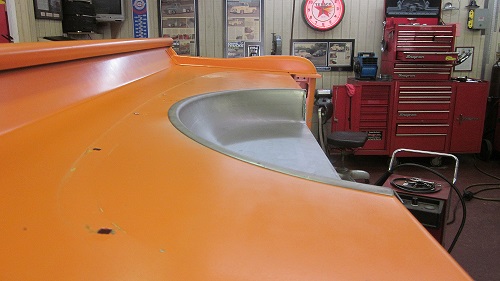

Check Fit of Tub

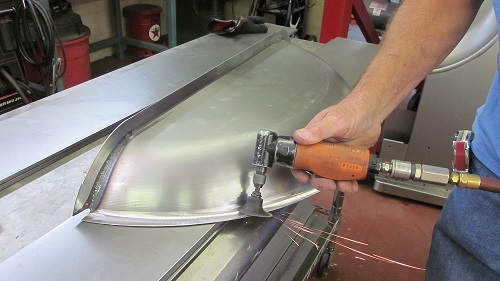

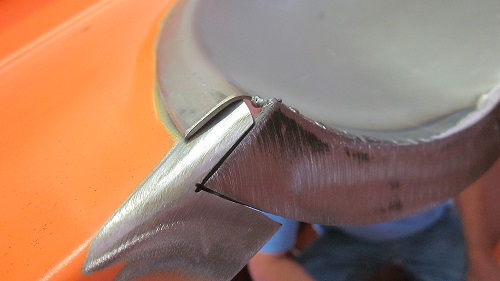

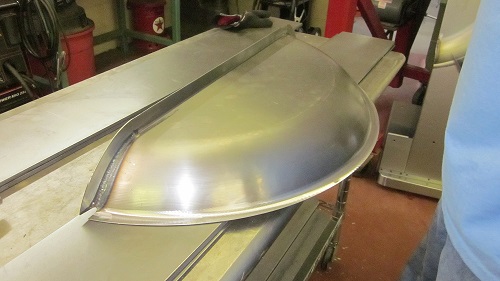

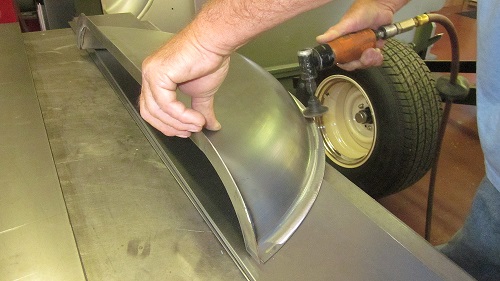

Grind Lip on Tub

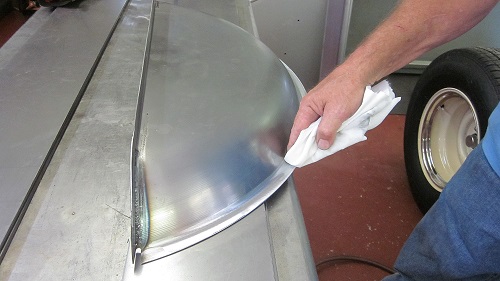

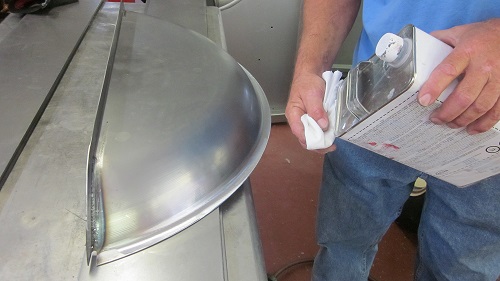

Put Lacquer Thinner on Rag, & Clean Tub & Bed Side
Blow off all Lint from Rag

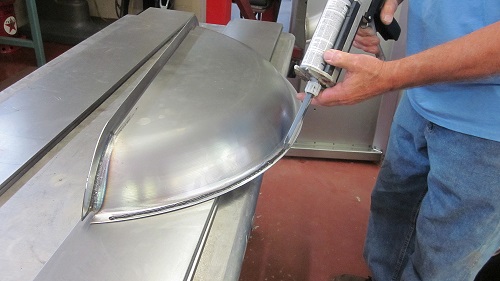

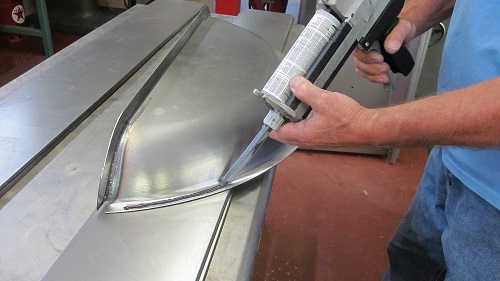

Using 3M Epoxy Metal Bond with Solid Bead
Panel Bond Adhesive 3M #8115

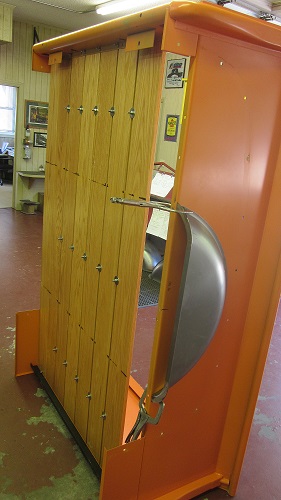

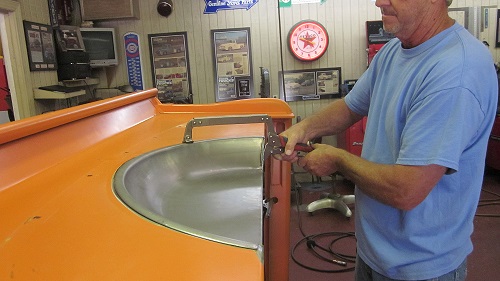

Place Tub back in Bed Side
Line up Lip at Bottom

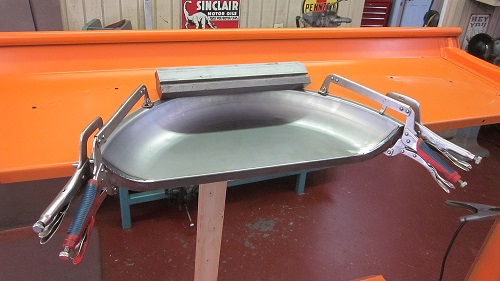

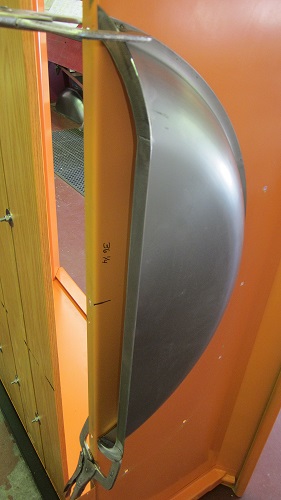

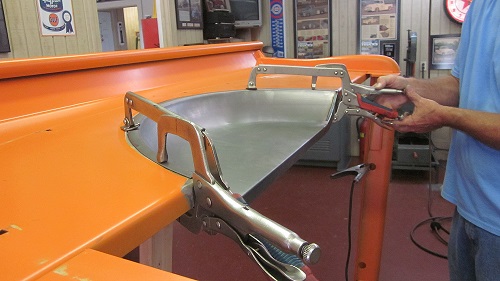

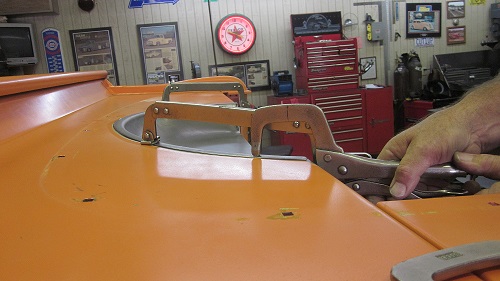

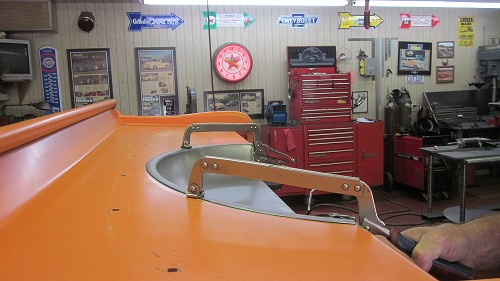

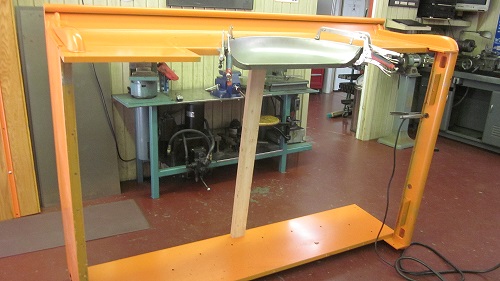

Begin with Clamps & Heavy steel to set.
Leave overnight to Bond.

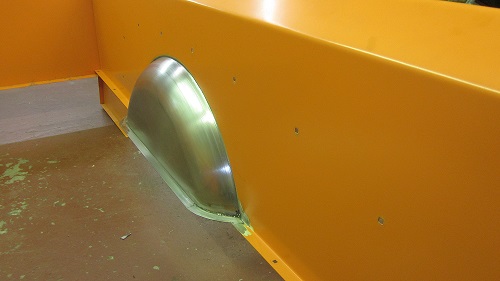

Next day Weld Tub Lip to Bottom of Bed Lip

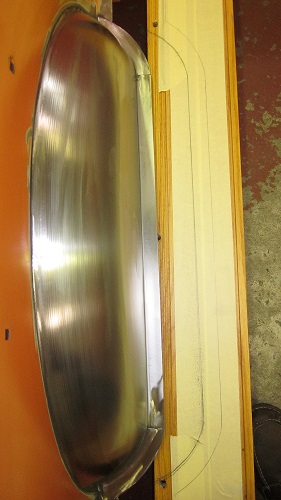

Place board under Bed Lip
Mark outside & inside of board

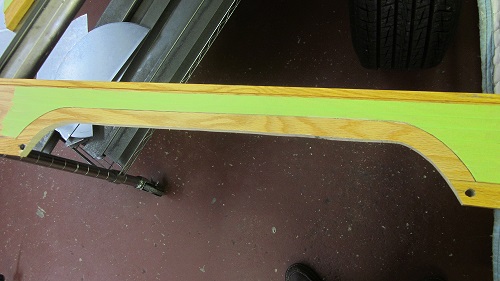

Board is marked & ready

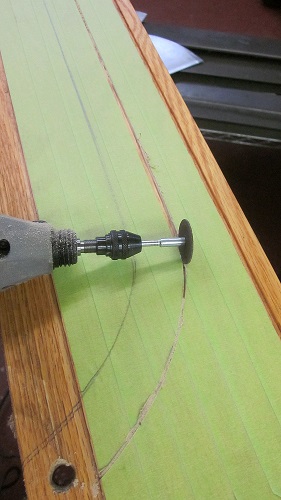

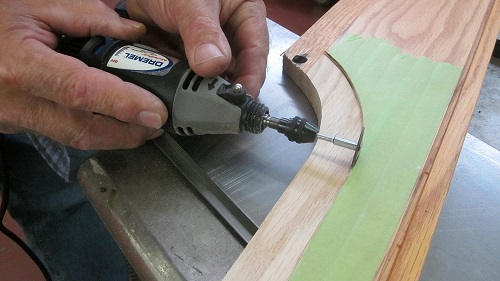

Used Dremel to clean up edge

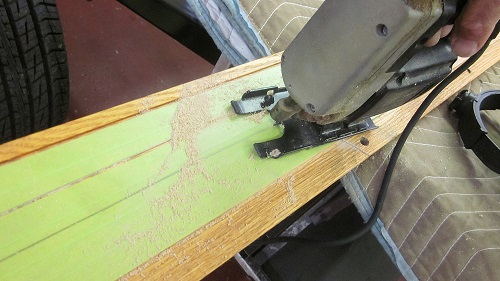

Jigsaw cut first mark on board

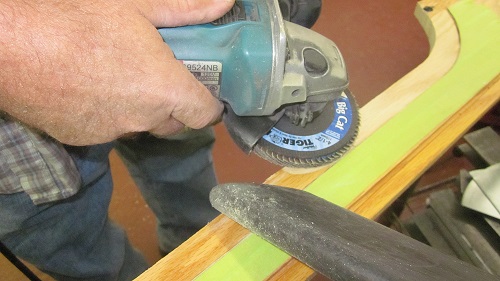

Grind 1/8" for tub to fit

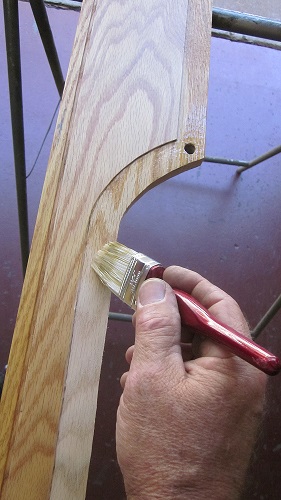

Stain to match original color.

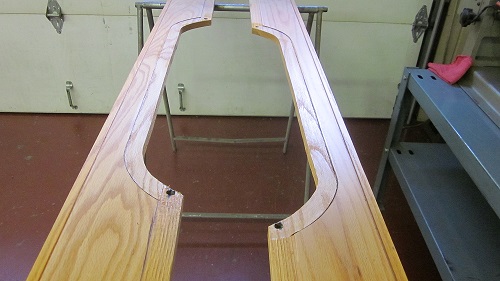

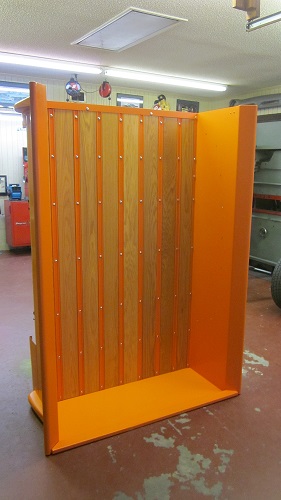

Boards are finished and ready to install.

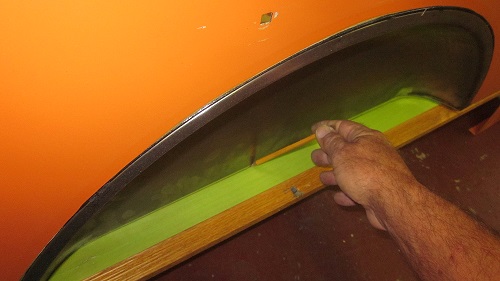

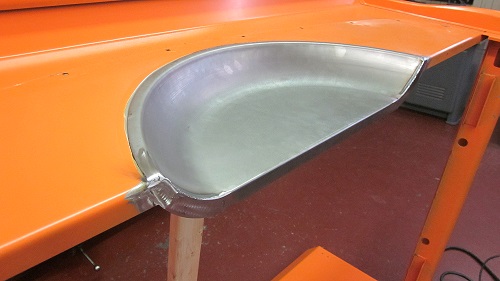

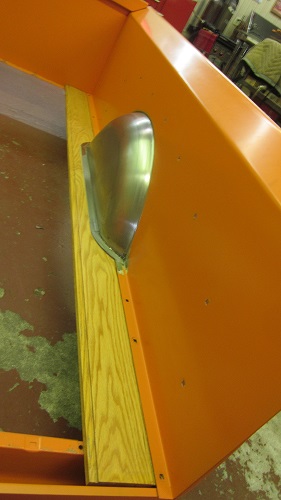

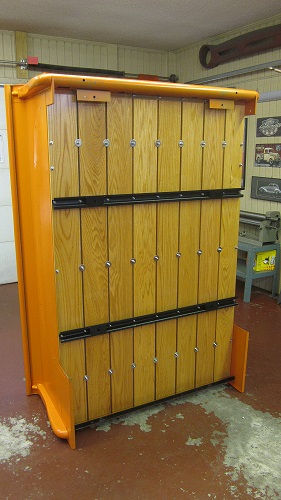

This is fitted and installed.
